Shift Register Visualizer

February 2017

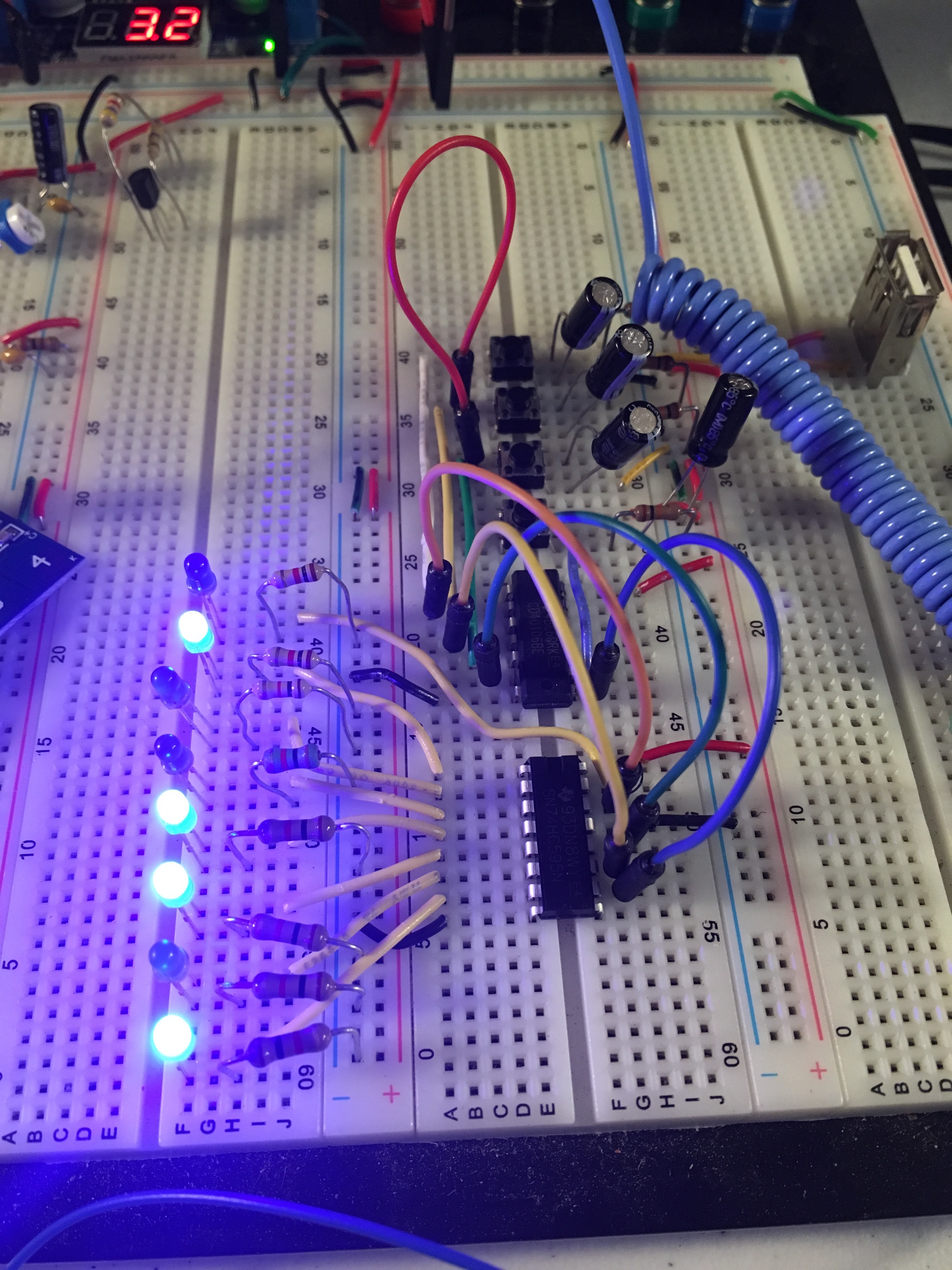

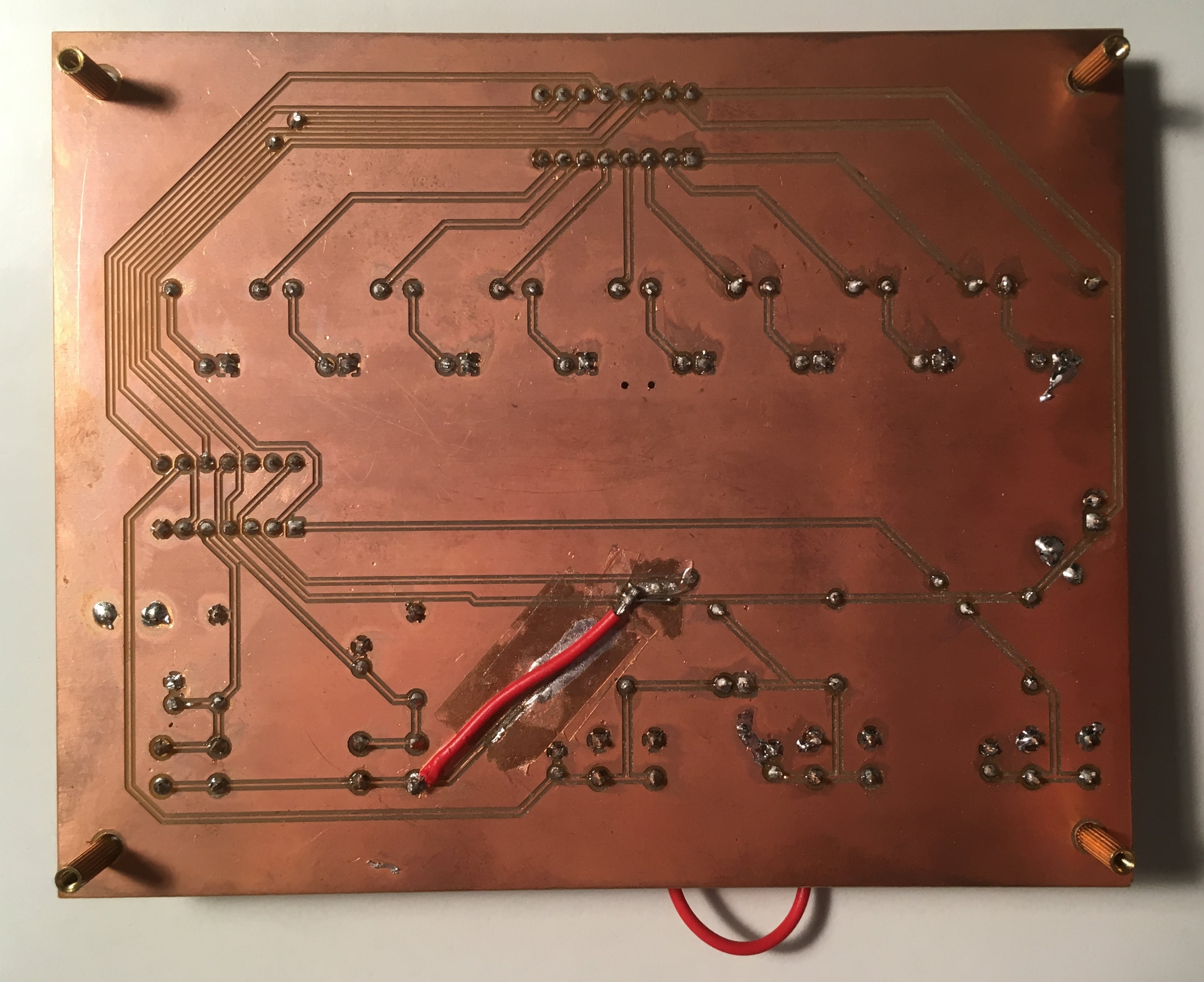

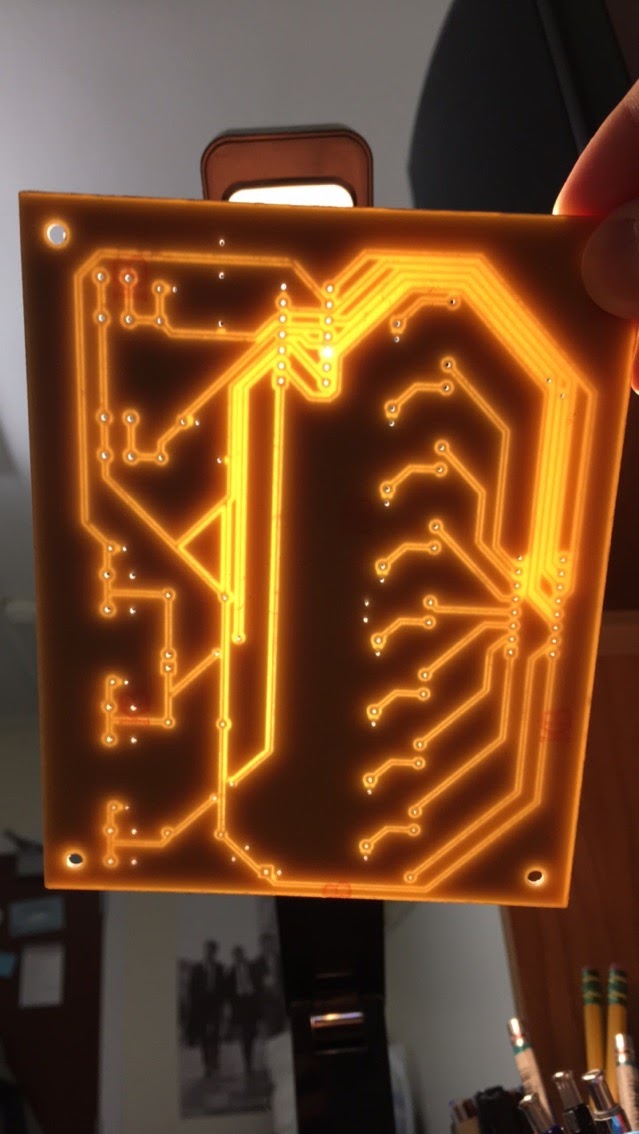

My first ever PCB design! Initially prototyped on a breadboard, then drawn in Kicad and fabricated with an Othermill. The data, clock, enable, and reset pins are controlled with pushbuttons. Each pushbutton is debounced with a capacitor and Schmitt trigger.
